Main Image

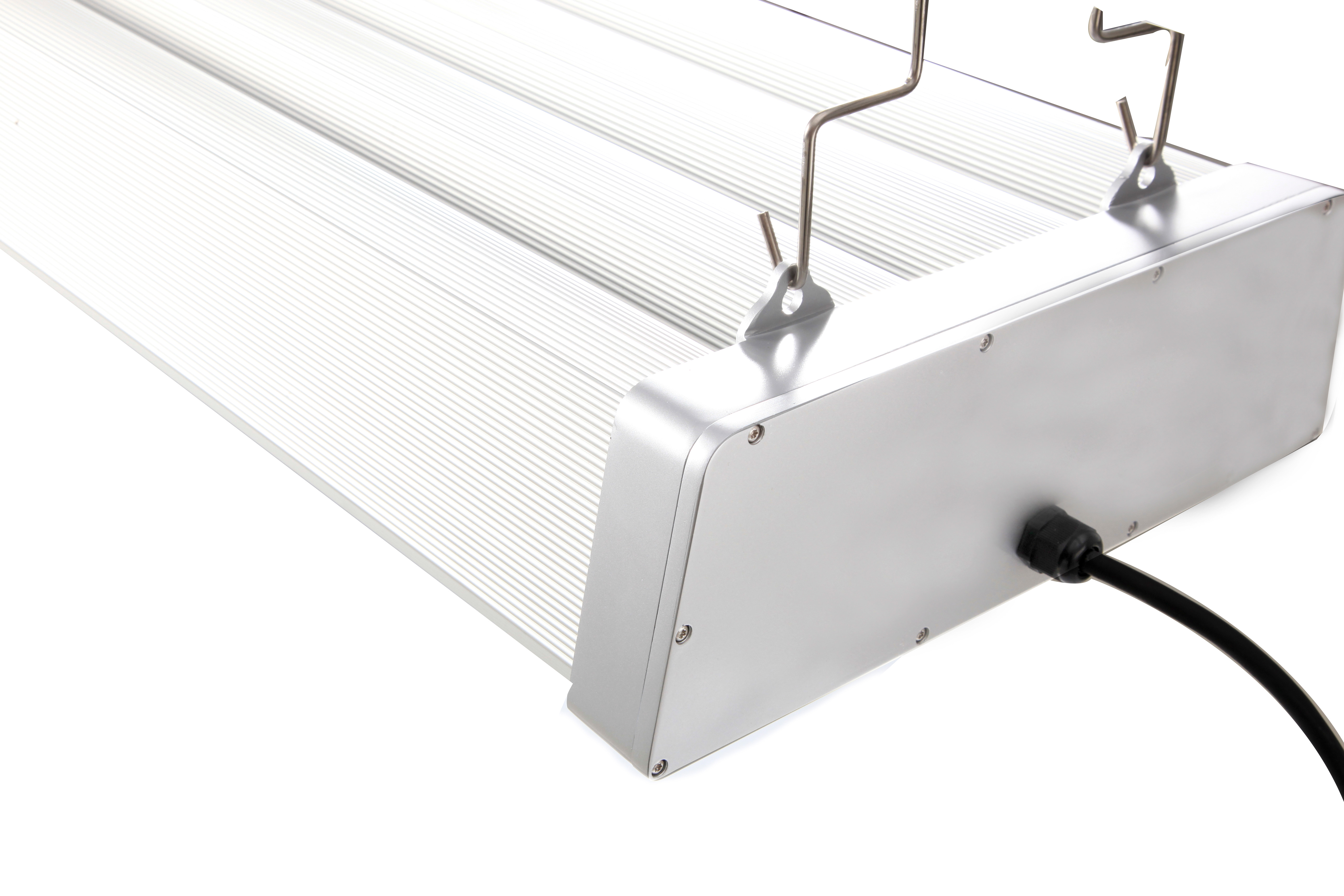

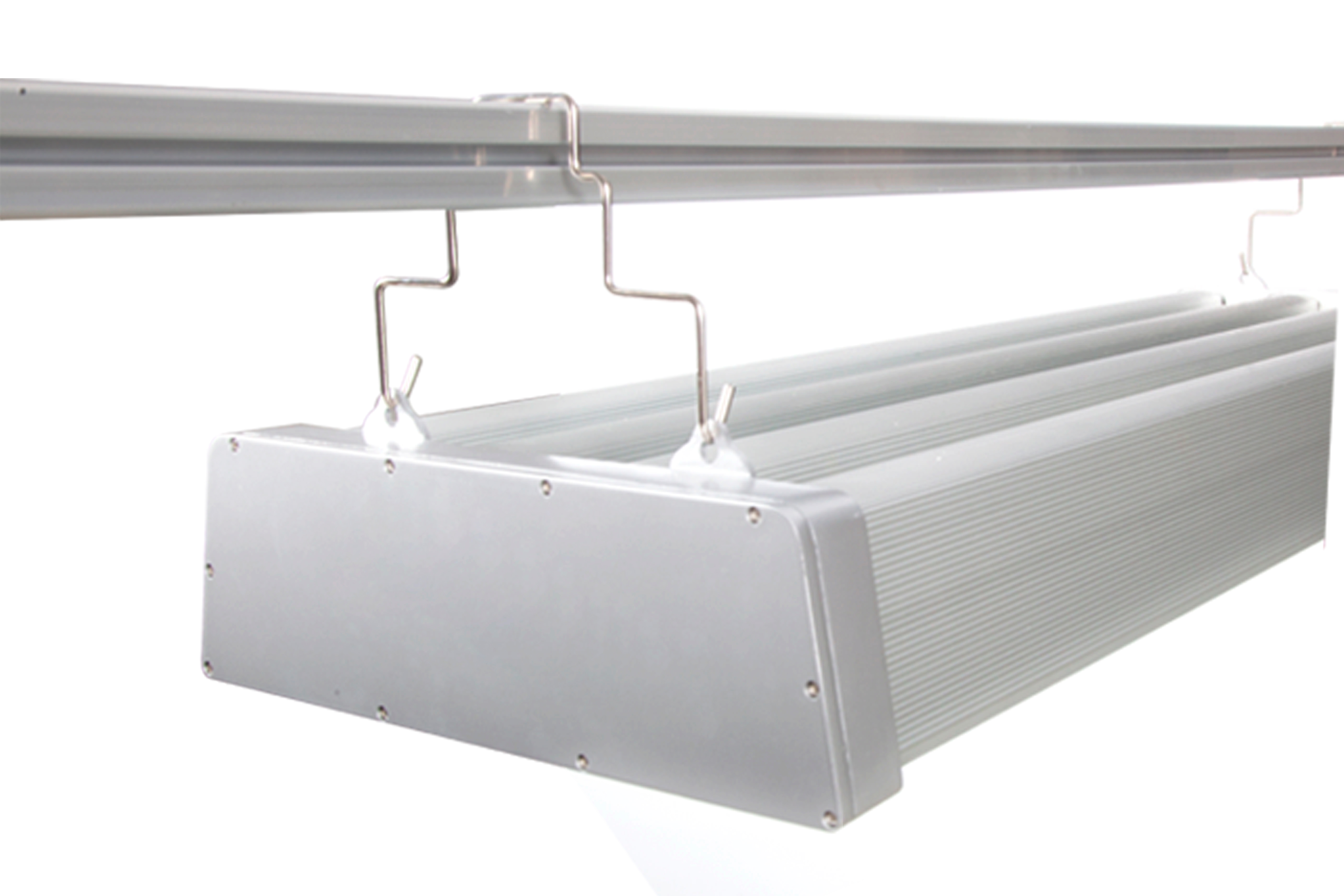

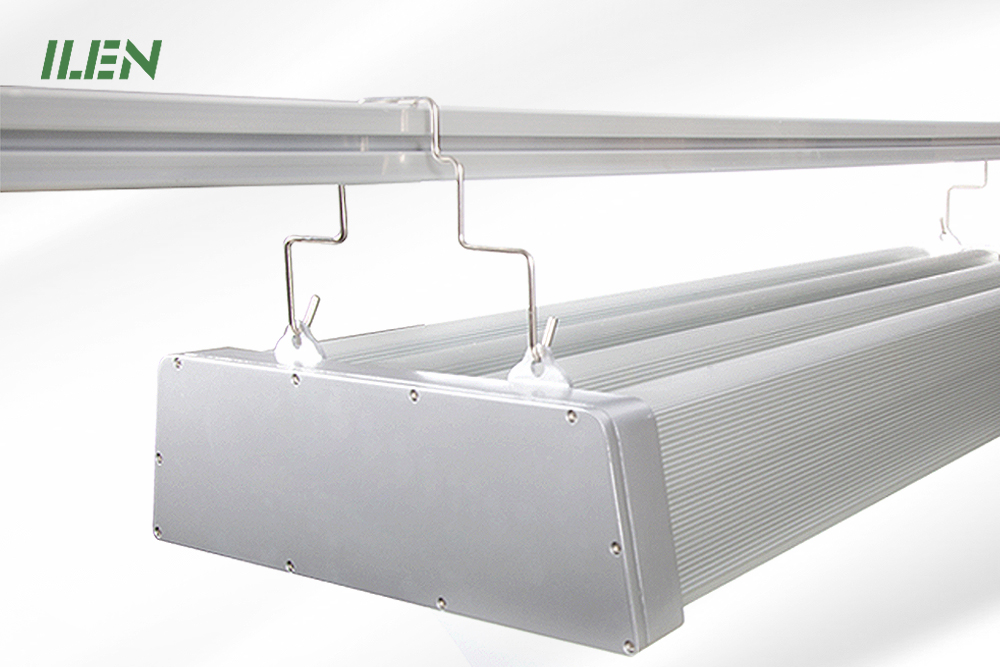

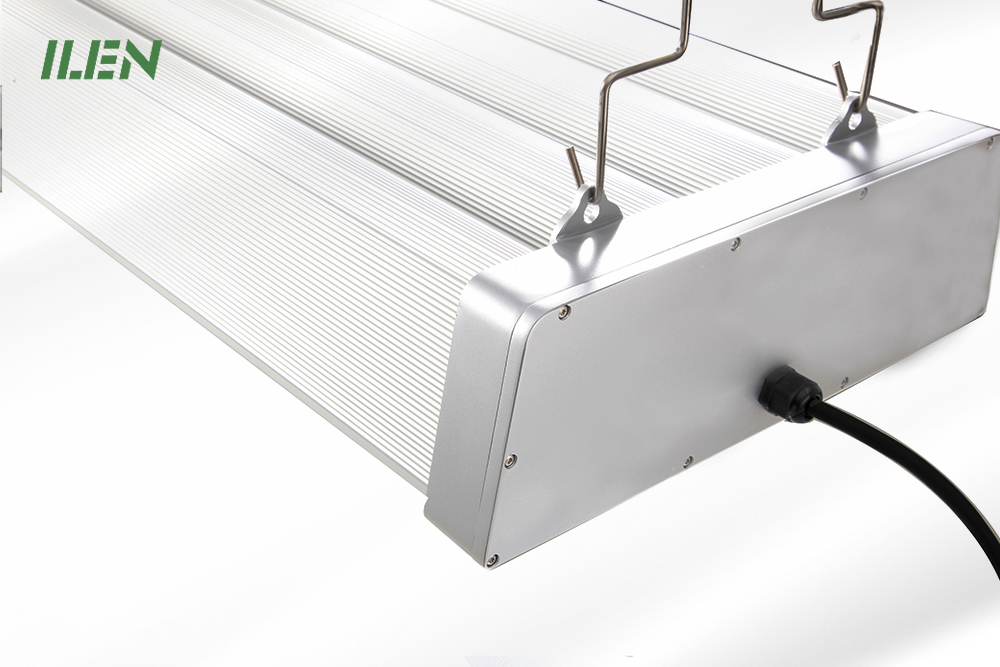

QuardraCore 1000

Dimension1000*400*150mm
Body MaterialAluminium 6063
LensPC
Wattage1000W
PPF2400-3500umol/s
PPE2.4-3.5
IP RatingIP65
ApplicationGreen house
High PPE Efficiency

2.8-3.5 μmol/J efficiency maximizes photon output per watt, reducing energy costs by up to 50%.

IP66 Protection

Dust-tight and powerful water resistance for harsh greenhouse environments.

Optimal Spectrum

Customizable spectrum with enhanced red/blue peaks for different growth stages.

Low Heat Output

Advanced thermal management keeps canopy temperatures optimal.

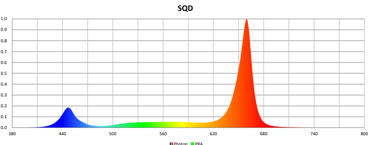

Advanced Photobiology Technology

Our lights utilize targeted wavelengths to optimize photosynthesis:

  • Blue (450nm): Enhances vegetative growth and chlorophyll production
  • Red (660nm): Promotes flowering and fruiting
  • Far Red (730nm): Regulates photoperiod responses
  • UV (380-400nm): Boosts secondary metabolite production
UV
Blue
Green
Red
Far Red
Request Custom Quote

Technical Excellence

Performance Metrics
  • PPE up to 3.5 μmol/J - 30% more efficient than industry standard
  • Uniformity >90% across canopy
  • Lifetime: 50,000 hours (L90)
  • Dimming: 0-100%
  • 0-10V/PWM/DALI control options
Smart Features
  • Wireless monitoring and control
  • Real-time energy consumption tracking
  • Light recipe programming
Energy Efficiency Comparison (μmol/J)
2.1
HPS
2.5
Standard LED
3.2
PivotBeam
3.5
PivotBeam Pro

Application Scenarios

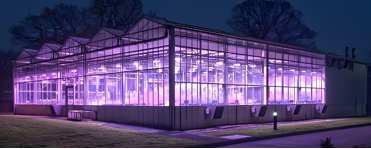

Commercial Greenhouses

Supplement natural sunlight during cloudy periods and extend growing seasons. Our lights provide consistent PAR levels regardless of weather conditions, increasing annual yield by up to 40%.

Vertical Farms

Optimize space utilization with our slim-profile fixtures. The uniform light distribution ensures consistent growth across all tiers, with spectrum tuning for different crop varieties.

Hydroponic Systems

Accelerate growth cycles with precise light recipes. Our IP66 rating provides perfect protection against high humidity environments common in hydroponic setups.

Research Facilities

Reproducible light conditions for scientific studies. Programmable spectra allow researchers to isolate specific wavelength effects on plant physiology.

Sustainable Agriculture Solution

The QuardraCore 1000 Series is designed with environmental responsibility at its core:

  • Reduces energy consumption by 50% compared to HPS systems
  • 100% recyclable aluminum construction
  • Zero hazardous materials (RoHS compliant)
  • 5-year lifespan reduces electronic waste
  • Enables local food production, reducing transport emissions
Carbon Negative by 2025 Zero Landfill Initiative
Eco Impact

Performance & Light Distribution

Scientific data to ensure optimal canopy coverage and growth uniformity.

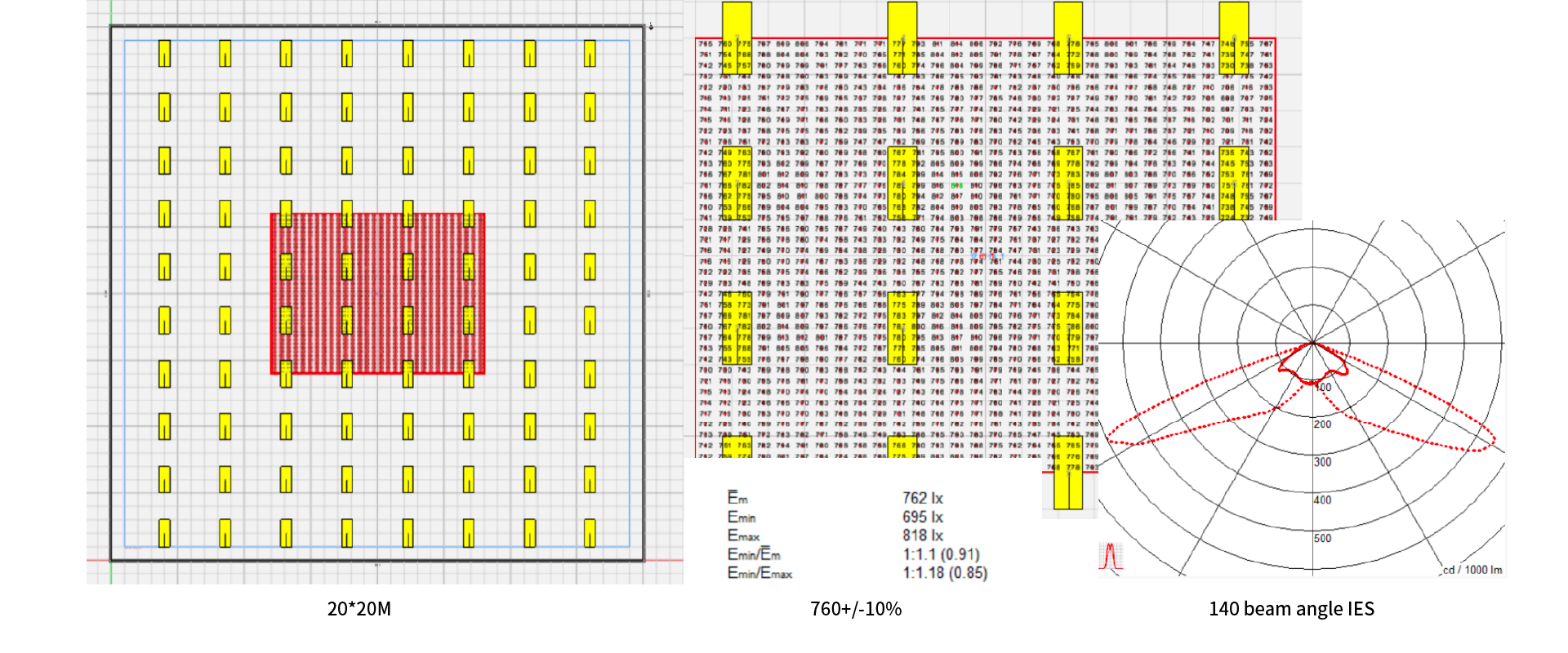

PPFD & Light Uniformity

Industry-leading uniformity with fewer light bars - More efficient, more sustainable

Light Distribution Parameters

Eco-Friendly

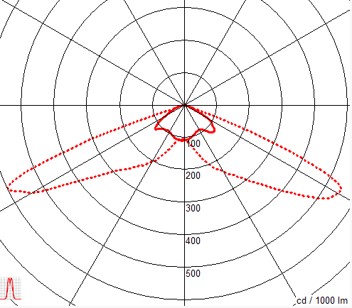

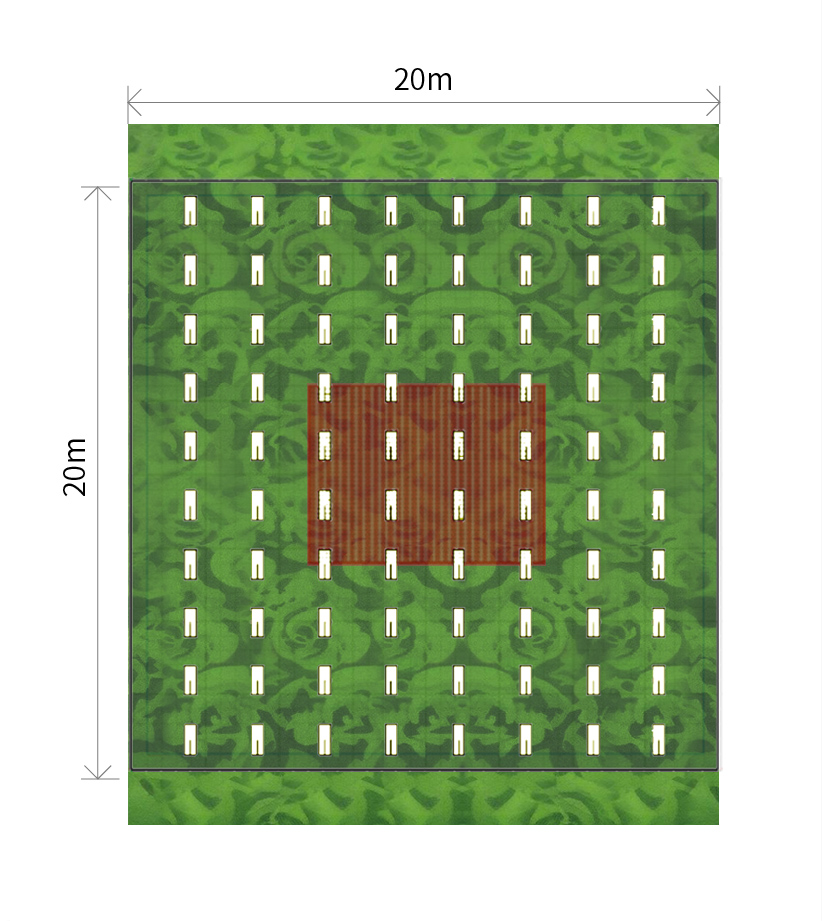

140 beam angle IES
140 beam angle IES
Ēm: 762 lx
Emin: 695 lx
Emax: 818 lx
Emin/Ēm: 1:1.1 (0.91)
Emin/Emax: 1:1.18 (0.85)
140 beam angle IES
Performance Rating
91%
Uniformity
A+
Grade
Excellent light distribution
Key Features
Consistent light coverage
Energy efficient design
Minimal hotspot formation
Uniform plant growth

Environmental & Efficiency Comparison

Energy Efficiency

ILEN solution uses 33% fewer light bars while providing better coverage

Energy Use
Material Reduction

Less aluminum and electronics used in manufacturing

Material Use
Carbon Footprint

Lower energy consumption translates to reduced CO₂ emissions

Emissions

WHY ILEN?

Trusted by growers worldwide for quality, innovation, and support.

FACTORY DIRECT

Manufacturer-direct pricing with no middlemen. Custom solutions with rapid prototyping.

10+ YEARS EXPERIENCE

Leading horticultural lighting manufacturer with extensive OEM/ODM expertise.

CERTIFIED QUALITY

ISO 9001 certified with rigorous quality control at every production stage.

FULL CUSTOMIZATION

Bespoke solutions for spectrum, form factor, power, and control systems.
